从 SDK 继续

上一步已经在配置工具里测过，并把代码导出。SDK 在安装目录 C:\DARRA\Profinet_Slave\SDK\，也可从公共仓库安装（C# 用 NuGet、Python 用 PyPI、Java 用 Maven Central、Rust 用 crates.io，见下载页）。C# 写 using Darra.PnS; 即可，其他语言见各 SDK 页。

最小循环

站名和网卡在配置工具里设。程序侧：new → Start → 映射一次过程数据（0 拷贝：结构体映射在过程映像上，源头变字段自己变）→ Stop。

总线周期由内核完成，不必自写周期循环，任意线程可同时用。Read / Write 这类是快照（拷出来的实例不会自己变）；0 拷贝入口是各语言的 InputsMapping / OutputsMapping 同名入口（I 侧只读、Q 侧可写）。

using System.Runtime.InteropServices;
using Darra.PnS;

[StructLayout(LayoutKind.Sequential, Pack = 1)]
struct FromPlc     // I：控制器 → 设备
{
  public byte Present;
  public short Recipe;   // 线上大端：布局对上即可，取值走 Read(ref rx)
}

[StructLayout(LayoutKind.Sequential, Pack = 1)]
struct ToPlc      // Q：设备 → 控制器
{
  public byte Ready;
  public byte Busy;
}

using (var device = new DarraPnS())
{
  device.Start();

  // 映射一次
  ref readonly var inp = ref device.ProcessData.InputsMapping<FromPlc>();
  ref ToPlc outp = ref device.ProcessData.OutputsMapping<ToPlc>();

  while (running)
  {
    if (!device.Connected)
      continue;

    byte present = inp.Present;  // 读 I：总线刷新后自己变
    outp.Ready = 1;              // 写 Q：直接落过程映像
  }

  device.Stop();
}

多字节字段是 PROFINET 网络大端（线上字节序）：直接当宿主 short / int 读会字节颠倒，要宿主序数值走 Read / Write（大端编解码）。

C++

#include "pns.hpp"
using namespace darra::pns;

#pragma pack(push, 1)
struct FromPlc     // I：控制器 → 设备
{
  uint8_t Present;
  uint8_t Trigger;
  int16_t Recipe;
};

struct ToPlc      // Q：设备 → 控制器
{
  uint8_t Ready;
  uint8_t Busy;
  uint8_t Ok;
  uint8_t Ng;
};
#pragma pack(pop)

PnSService device;
device.Start();

// 映射一次
const FromPlc& inp = device.ProcessData().InputsMapping<FromPlc>();
ToPlc& outp = device.ProcessData().OutputsMapping<ToPlc>();

while (running)
{
  if (!device.Connected())
    continue;

  uint8_t present = inp.Present;  // 读 I：总线刷新后自己变
  outp.Ready = 1;                 // 写 Q：直接落过程映像
}

device.Stop();

C

#include "pns.h"

#pragma pack(push, 1)
typedef struct {          /* I：控制器 → 设备 */
    uint8_t Present;
    uint8_t Trigger;
} from_plc_t;

typedef struct {          /* Q：设备 → 控制器 */
    uint8_t Ready;
    uint8_t Busy;
    uint8_t Ok;
    uint8_t Ng;
} to_plc_t;
#pragma pack(pop)

pns_service_handle_t session = NULL;
PnSServiceConnectRealtime(&session);
PnSServiceStart(session);

/* 映射一次 */
const uint8_t *i = NULL;                  /* I 只读 */
volatile uint8_t *q = NULL;               /* Q 可写 */
size_t ni = 0, nq = 0;
if (PnSProcessDataInputsMappingRO(session, &i, &ni) != PNS_OK ||
    PnSProcessDataOutputsMapping(session, &q, &nq) != PNS_OK ||
    i == NULL || q == NULL ||             /* 失败时视图为空 */
    ni < sizeof(from_plc_t) || nq < sizeof(to_plc_t))
{
    /* 过程映像不可用 */
}

const from_plc_t *inp = (const from_plc_t *)i;
to_plc_t *outp = (to_plc_t *)q;

while (running)
{
    if (!PnSServiceIsConnected(session))
        continue;

    uint8_t present = inp->Present;  /* 读 I：总线刷新后自己变 */
    outp->Ready = 1;                 /* 写 Q：直接落过程映像 */
}

PnSServiceStop(session);
PnSServiceClose(session);

Python

import ctypes
from darra_pns import PnSService

class FromPlc(ctypes.BigEndianStructure):   # I：控制器 → 设备
    _pack_ = 1
    _fields_ = [("present", ctypes.c_uint8),
                ("recipe", ctypes.c_int16)]

class ToPlc(ctypes.BigEndianStructure):     # Q：设备 → 控制器
    _pack_ = 1
    _fields_ = [("ready", ctypes.c_uint8),
                ("busy", ctypes.c_uint8)]

with PnSService() as device:
    device.start()

    # 映射一次
    inp = device.process_data.inputs_mapping(FromPlc)
    outp = device.process_data.outputs_mapping(ToPlc)

    while running:
        if not device.connected:
            continue
        present = inp.present   # 读 I：总线刷新后自己变
        outp.ready = 1          # 写 Q：直落共享区

    device.stop()

快照是 device.read_struct("Hi") / device.write_struct("Bf", 1, 1.5) 与 device.process_data.read_struct / write_struct —— 拷出来的实例不会自己变。地址化读写是兼容路径：

device.write_bool("Q0.0", True)
from_plc = device.read_bool("I0.0")

Java

import com.darra.pns.service.PnSService;
import com.sun.jna.Structure;
import com.sun.jna.Structure.FieldOrder;

@FieldOrder({"present", "recipe"})
class FromPlc extends Structure {   // I：控制器 → 设备
    public byte present;
    public short recipe;
    public FromPlc() { super(ALIGN_NONE); }
}

@FieldOrder({"ready", "busy"})
class ToPlc extends Structure {     // Q：设备 → 控制器
    public byte ready;
    public byte busy;
    public ToPlc() { super(ALIGN_NONE); }
}

try (PnSService device = new PnSService()) {
    device.start();

    // 映射一次
    FromPlc inp = device.processData().inputsMapping(FromPlc.class);
    ToPlc outp = device.processData().outputsMapping(ToPlc.class);

    while (running) {
        if (!device.connected())
            continue;
        inp.read();                  // 过程映像 → 托管缓存
        byte present = inp.present;  // 读 I：总线刷新后自己变
        outp.ready = 1;
        outp.write();                // 写 Q：托管缓存 → 过程映像
    }

    device.stop();
}

Rust

use darra_pns::{PnSService, ServiceResult};

#[repr(C, packed)]
struct FromPlc { present: u8, recipe: i16 }   // I：控制器 → 设备
#[repr(C, packed)]
struct ToPlc { ready: u8, busy: u8 }          // Q：设备 → 控制器

fn main() -> ServiceResult<()> {
    let device = PnSService::new();
    device.start()?;

    // 映射一次
    let inp = unsafe { device.process_data().inputs_mapping::<FromPlc>()? };
    let outp = unsafe { device.process_data().outputs_mapping::<ToPlc>()? };

    while running {
        if !device.connected() {
            continue;
        }
        let present = inp.present;  // 读 I：总线刷新后自己变
        outp.ready = 1;             // 写 Q：直接落过程映像
        let _ = present;
    }

    device.stop()?;
    Ok(())
}

地址化读写（Q0.0 / I0.0）是兼容路径。

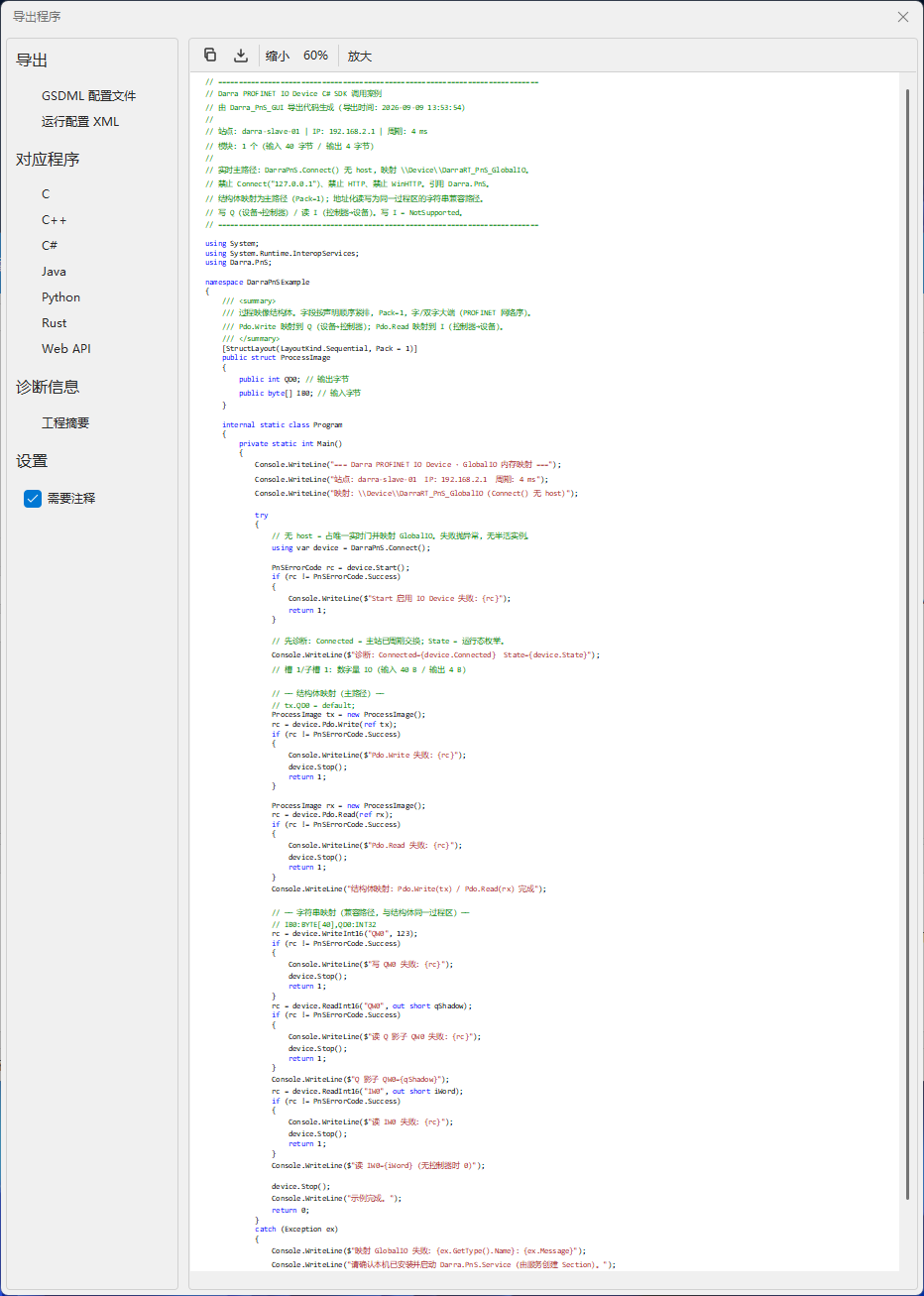

配置工具顶栏「导出」可写出各语言示例。

完整 API 见 C# SDK。可跑示例见 小型视觉质检。
